Description
Outrunner brushless motor at KV210 for 12S LiPo. Φ68.6 × 39.3 mm stator.
Basic Specifications

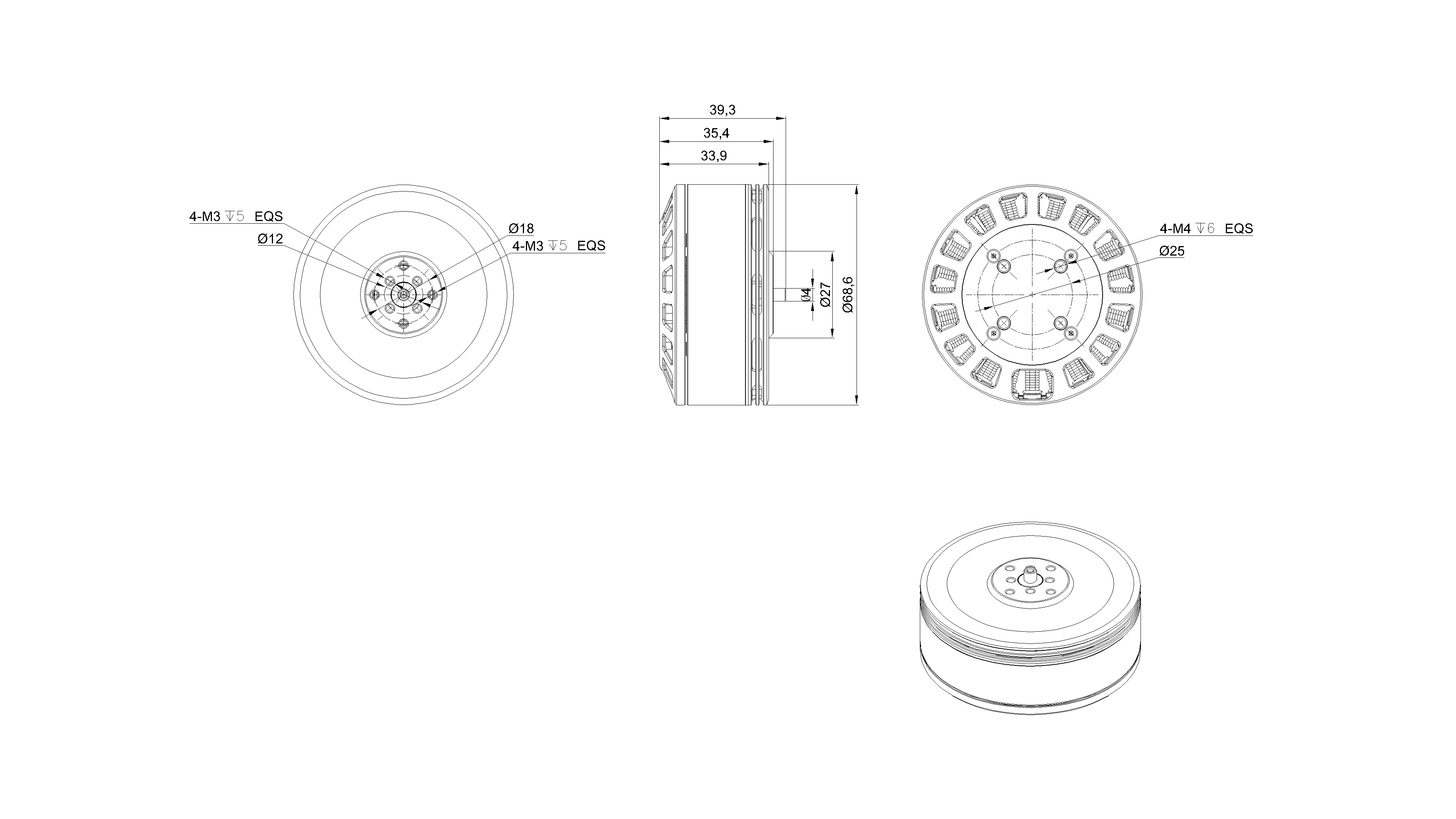

Stator Dimensions
Φ68.6 × 39.3 mm
Slots / Poles
24N28P (14 pole pairs)
Motor Weight
354 g
KV Value
KV210
Rated Voltage
44.4 V (12S LiPo)
Max Current
81 A
Max Power
3733 W
Recommended Prop
22 inch (22×7.8)
Operating Temp
-20 ~ +85 ℃
Load Performance Data
12S LiPo, 20%–100% throttle on static thrust stand. Measured values; rated specs may differ.
Propeller 22 × 7.8 · Thrust (g) vs Throttle (%)
Propeller 22 × 7.8
| Throttle | Voltage (V) | Thrust (g) | Torque (N·m) | Current (A) | Power (W) | Eff (g/W) | Temp (℃) |
|---|---|---|---|---|---|---|---|
| 20% | 45.98 | 933 | 0.259 | 1.94 | 89 | 10.5 | 29 |
| 40% | 45.86 | 3308 | 0.871 | 8.99 | 412 | 8.0 | — |
| 60% | 45.58 | 6646 | 1.731 | 24.32 | 1108 | 6.0 | — |
| 80% | 45.13 | 10509 | 2.738 | 49.15 | 2218 | 4.7 | — |
| 100% | 44.57 | 12625 | 3.680 | 67.76 | 3020 | 4.5 | — |
