Description
Outrunner brushless motor at KV180 for 12S LiPo high-payload platforms. Φ68.6 × 36.3 mm stator.
Basic Specifications

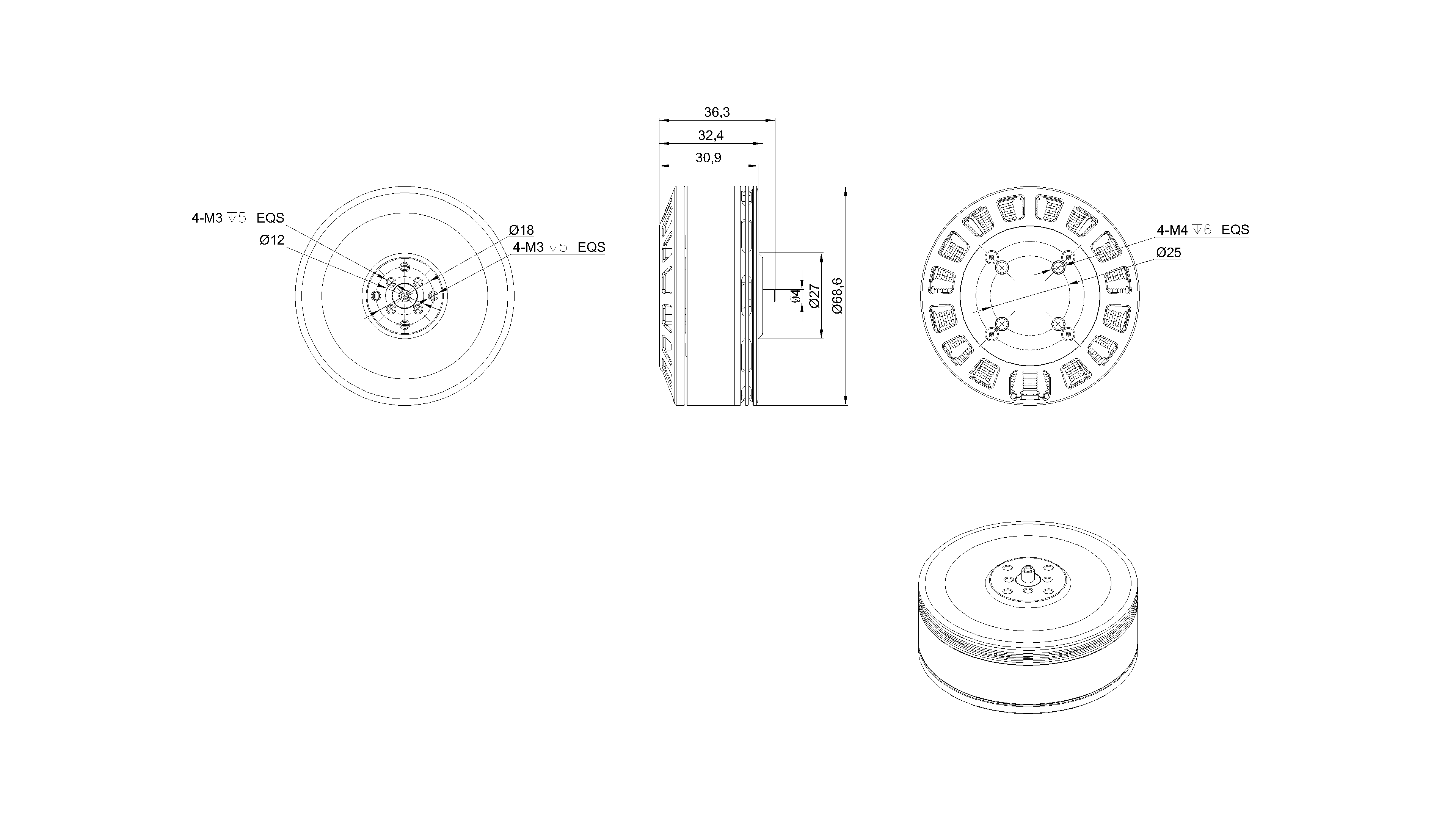

Stator Dimensions
Φ68.6 × 36.3 mm
Slots / Poles
24N28P (14 pole pairs)
Motor Weight
292 g
KV Value
KV180
Rated Voltage
44.4 V (12S LiPo)
Max Current
58 A
Max Power
2685 W
Recommended Prop
22 inch (22×7.8)
Operating Temp
-20 ~ +85 ℃
Load Performance Data
12S LiPo, 20%–100% throttle on static thrust stand. Measured values; rated specs may differ.
Propeller 22 × 7.8 · Thrust (g) vs Throttle (%)
Propeller 22 × 7.8
| Throttle | Voltage (V) | Thrust (g) | Torque (N·m) | Current (A) | Power (W) | Eff (g/W) | Temp (℃) |
|---|---|---|---|---|---|---|---|
| 20% | 50.38 | 763 | 0.210 | 1.20 | 60 | 12.0 | 30.7 |
| 40% | 50.30 | 2671 | 0.710 | 6.60 | 332 | 8.0 | — |
| 60% | 50.10 | 5703 | 1.500 | 17.85 | 894 | 6.5 | — |
| 80% | 49.75 | 9495 | 2.483 | 38.21 | 1901 | 5.0 | — |
| 100% | 45.95 | 11991 | 2.812 | 53.23 | 2445 | 4.5 | — |
