Description
Outrunner brushless motor at KV380 for 6S LiPo. Φ44.5 × 26.7 mm stator, well-suited to long-flight multirotor builds.
Basic Specifications

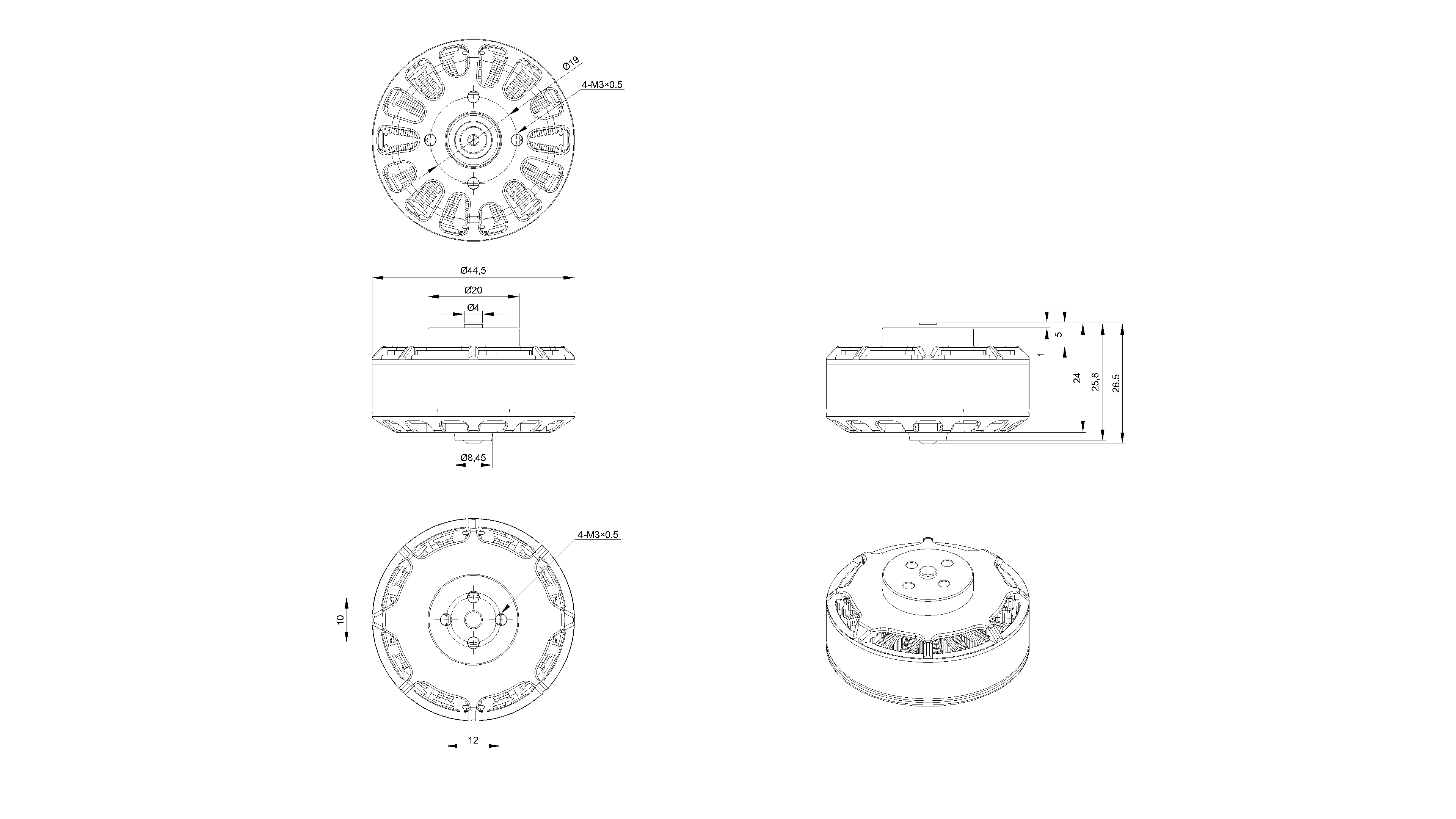

Stator Dimensions
Φ44.5 × 26.7 mm
Slots / Poles
18N24P (12 pole pairs)
Motor Weight
82.5 g
KV Value
KV380
Rated Voltage
22.2 V (6S LiPo)
Max Current
16.25 A
Max Power
405 W
Recommended Prop
14 ~ 15 inch (14×4.7 / 15×5.0 / 15×5.5)
Operating Temp
-20 ~ +85 ℃
Load Performance Data
6S LiPo, sea-level static thrust stand. Measured values; rated specs may differ.
Propeller 14 × 4.7 · Thrust (g) vs Throttle (%)
Propeller 15 × 5.0 · Thrust (g) vs Throttle (%)
Propeller 15 × 5.5 · Thrust (g) vs Throttle (%)
Propeller 14 × 4.7
| Throttle | Voltage (V) | Thrust (g) | Torque (N·m) | Current (A) | Power (W) | Eff (g/W) | Temp (℃) |
|---|---|---|---|---|---|---|---|
| 20% | 25.19 | 113 | 0.024 | 0.28 | 7.0 | 16.2 | 26.5 |
| 40% | 25.18 | 416 | 0.086 | 1.40 | 35.2 | 11.8 | — |
| 60% | 25.13 | 866 | 0.186 | 3.85 | 96.9 | 8.9 | — |
| 80% | 25.04 | 1439 | 0.302 | 9.51 | 238.2 | 6.0 | — |
| 100% | 24.92 | 1909 | 0.412 | 16.25 | 404.9 | 4.7 | — |
Propeller 15 × 5.0
| Throttle | Voltage (V) | Thrust (g) | Torque (N·m) | Current (A) | Power (W) | Eff (g/W) | Temp (℃) |
|---|---|---|---|---|---|---|---|
| 20% | 25.21 | 70 | 0.018 | 0.20 | 5.1 | 13.5 | 28.2 |
| 40% | 25.19 | 372 | 0.075 | 1.21 | 30.4 | 12.2 | 28.0 |
| 60% | 25.15 | 784 | 0.148 | 3.35 | 84.2 | 9.3 | 27.6 |
| 80% | 25.09 | 1246 | 0.241 | 6.82 | 171.2 | 7.3 | 27.4 |
| 100% | 25.00 | 1787 | 0.346 | 11.61 | 290.4 | 6.2 | 28.0 |
Propeller 15 × 5.5
| Throttle | Voltage (V) | Thrust (g) | Torque (N·m) | Current (A) | Power (W) | Eff (g/W) | Temp (℃) |
|---|---|---|---|---|---|---|---|
| 20% | 25.18 | 111 | 0.030 | 0.27 | 6.9 | 16.0 | 15.9 |
| 40% | 25.16 | 443 | 0.113 | 1.62 | 40.7 | 10.9 | 16.1 |
| 60% | 25.10 | 862 | 0.223 | 4.26 | 107.0 | 8.1 | 15.8 |
| 80% | 25.01 | 1369 | 0.356 | 8.97 | 224.4 | 6.1 | 16.3 |
| 100% | 24.87 | 1865 | 0.496 | 15.15 | 376.7 | 5.0 | 16.2 |
