Description
Outrunner brushless motor at KV1100 for 6S LiPo platforms. Φ33.4 × 38 mm stator.
Basic Specifications

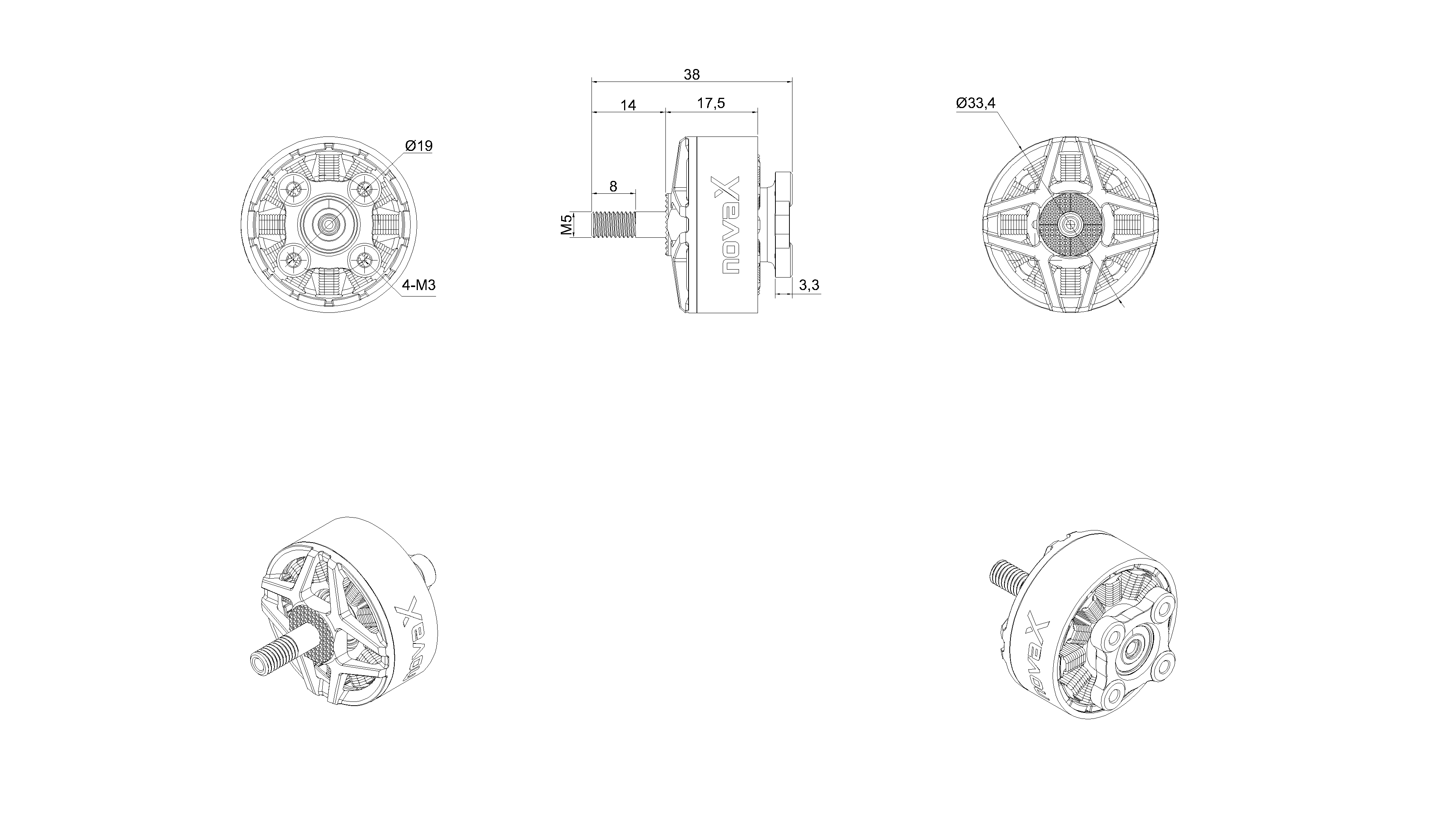

Stator Dimensions
Φ33.4 × 38 mm
Slots / Poles
12N14P (7 pole pairs)
Motor Weight
62 g
KV Value
KV1100
Rated Voltage
22.2 V (6S LiPo)
Max Current
44.3 A
Max Power
1074 W
Recommended Prop
7 ~ 8 inch (7×4.0 / 8×4.0)
Operating Temp
-20 ~ +85 ℃
Load Performance Data
6S LiPo, sea-level static thrust stand. Measured values; rated specs may differ.
Propeller 7 × 4.0 · Thrust (g) vs Throttle (%)
Propeller 8 × 4.0 · Thrust (g) vs Throttle (%)
Propeller 7 × 4.0
| Throttle | Voltage (V) | Thrust (g) | Torque (N·m) | Current (A) | Power (W) | Eff (g/W) | Temp (℃) |
|---|---|---|---|---|---|---|---|
| 20% | 25.17 | 216.0 | 0.0281 | 1.40 | 35.2 | 6.1 | 24.5 |
| 40% | 25.12 | 531.0 | 0.0642 | 3.99 | 100.1 | 5.3 | 24.7 |
| 60% | 25.05 | 831.5 | 0.0991 | 7.06 | 176.9 | 4.7 | 24.8 |
| 80% | 24.89 | 1422.1 | 0.1701 | 14.97 | 372.6 | 3.8 | 25.2 |
| 100% | 24.64 | 2125.8 | 0.2573 | 27.13 | 668.5 | 3.2 | 25.8 |
Propeller 8 × 4.0
| Throttle | Voltage (V) | Thrust (g) | Torque (N·m) | Current (A) | Power (W) | Eff (g/W) | Temp (℃) |
|---|---|---|---|---|---|---|---|
| 20% | 25.17 | 279.3 | 0.0401 | 1.59 | 39.9 | 7.0 | 24.8 |
| 40% | 25.10 | 688.5 | 0.0956 | 5.20 | 130.6 | 5.3 | 24.7 |
| 60% | 24.95 | 1302.7 | 0.1793 | 12.36 | 308.5 | 4.2 | 25.0 |
| 80% | 24.66 | 2126.6 | 0.2923 | 25.59 | 631.0 | 3.4 | 25.7 |
| 100% | 24.27 | 2964.5 | 0.4101 | 44.27 | 1074.2 | 2.8 | 26.0 |
